Description

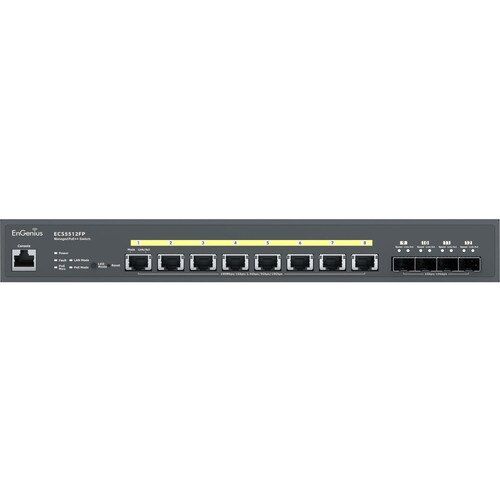

The EnGenius Cloud ECS5512FP is an 8-port, 10G per port, PoE++ layer 2+ switch that comes with a 420W power budget and 4 10G uplink ports, ensuring peak network efficiency and performance for successful large businesses. Choose Cloud or on-premises management based on your network architecture, administrative permissions, technical aptitude, and budget.
Features & Benefits
- ull-featured layer 2+ switching
- 8 100/1000/2500/5000/10000 Base-T GbE ports to serve high-bandwidth devices
- 802.3af/at/bt PoE++ capable on all ports with a 420W PoE budget for maximum power supply to devices
- 240 Gbps switching capacity for improved performance
- 4 Dual-Speed 10G SFP+ (fiber) uplink ports to connect at long distances, high speeds & high capacity
- Security - access control list/port security; 802.1X & RADIUS authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad link aggregation (LACP) supports traffic load balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- Features 8 networking ports to easily establish a local network or expand your existing one
- Cascade to other network devices through the uplink port to expand your local area network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Can work as layer 3 routing for scalable network design
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
Extra Information
Brand:
EnGenius
PoE Budget:
420 W
Network Technology:
10/100/1000Base-T,10GBase-X
Product Model:
ECS5512FP
Package Contents:
Cloud Managed 8-Port 10 Gigabit PoE++ Switch with 4 SFP+ Ports 1 x Quick Installation Guide 1 x Power Cord 1 x RJ45 Console Cable 1 x Rack Mount Kit
Manufacturer:
EnGenius Technologies, Inc.
Networking Standards:
IEEE 802.3x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ab,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3bz,IEEE 802.3an,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q
Length:
12.99″ (329.95 mm)
Port/Expansion Slot Details:
8 x 10Gigabit Ethernet PoE++,4 x Expansion Slots
Manufacturer Website Address:
http://www.engeniustech.com
Number of SFP+ Slots:
4
Input Voltage:
120 V AC,230 V AC
Total Number of Network Ports:
8
Ethernet Technology:
10 Gigabit Ethernet
Form Factor:
Rack-mountable
Product Series:
ECS
Manageable:
Yes
Media Type Supported:
Twisted Pair,Optical Fiber
Number of Total Expansion Slots:
4
Limited Warranty:
2 Year
Power Source:
Power Supply
Expansion Slot Type:
SFP+
Layer Supported:
3
PoE (RJ-45) Port:
Yes
Packaged Quantity:
1
Uplink Port:
Yes
Product Type:
Ethernet Switch
